calibration

The scale is ready calibrated, press “on”, scale count up and when it is not set to "0", press the "0" three seconds if that should not work or show error:

Calibration / Settings Display Indicator XK 315A 1

Settings / Calibration

Weigh yourself with a bathroom scale, we need this weight later

To enter the settings modus press

“0” and “on” buttom

Scale counts up

We must now learn to the scale what is “0”

Now push

☀

Push →

Push again ☀

Now the scale knows the -0-

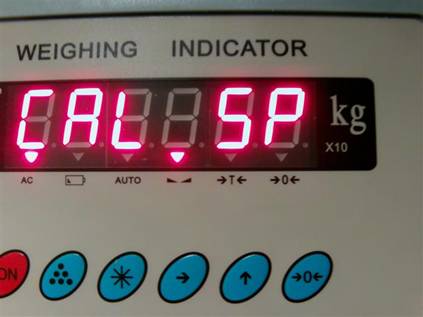

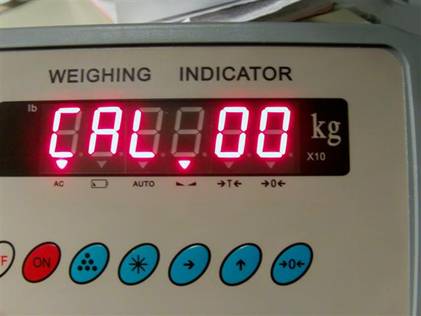

The display shows

and ask for the calibration weight

press the right arrow key →

first number is blinking

depending on how high the calibration weight is therefore press the →

up to the third - (over 100kg) or until the second digit from the right (flashing) and enter the ↑ "high key" to enter the the calibration weight

for example:

your weigh is 85 kilos, so you have 85 kilos calibration weigh, we press the "key right" to the second last position (from right - flashing) and press eight times the "key up" to the 8 , push the → again so the last number blinks and with the ↑ buttom we count up until 5

now stand on the platform od the scale, into the middle and press * key

stand still

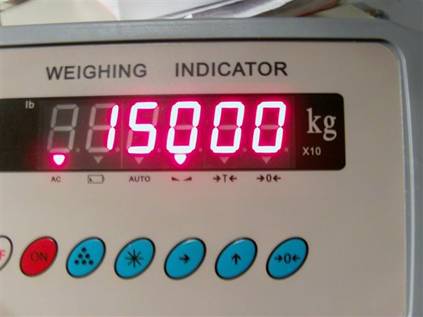

After 3-4 seconds their weight (85kg) now appears

You can now leave the scale again

Turn of the scale

Turn on the scale

and check whether the scale works,

the scale must show at all corners and at all points the same weight

You can also take other weights, calibration weights to calibrate course, or previously weighed food bags or something ell

Load Cells

Do not fastened the cradle to the end, so the thread does not pass through the load cell and abutting on the frame, otherwise the balance weighs incorrect

It must be always space between the load cells and the frame

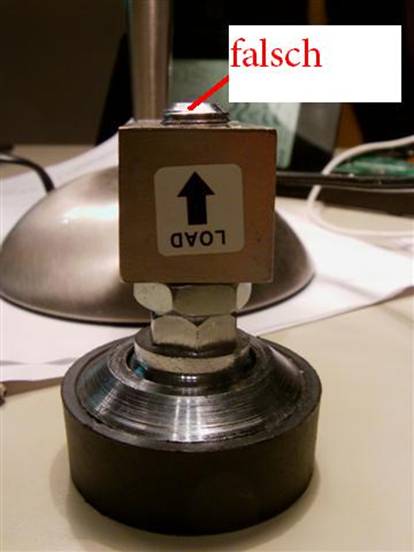

wrong

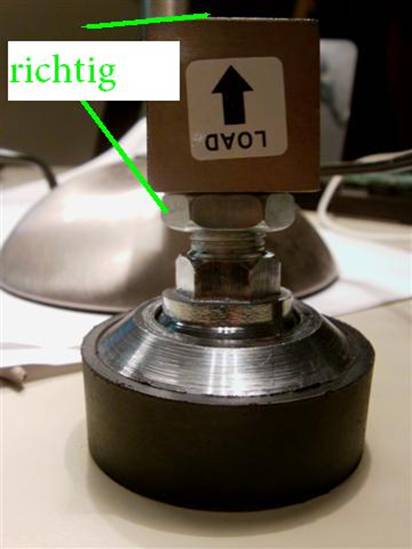

Right

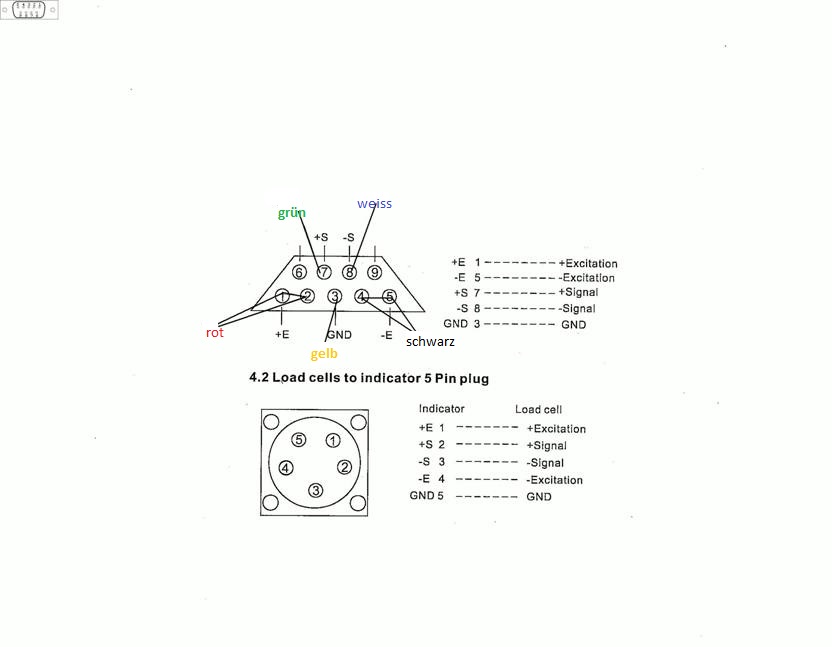

Pin assignment

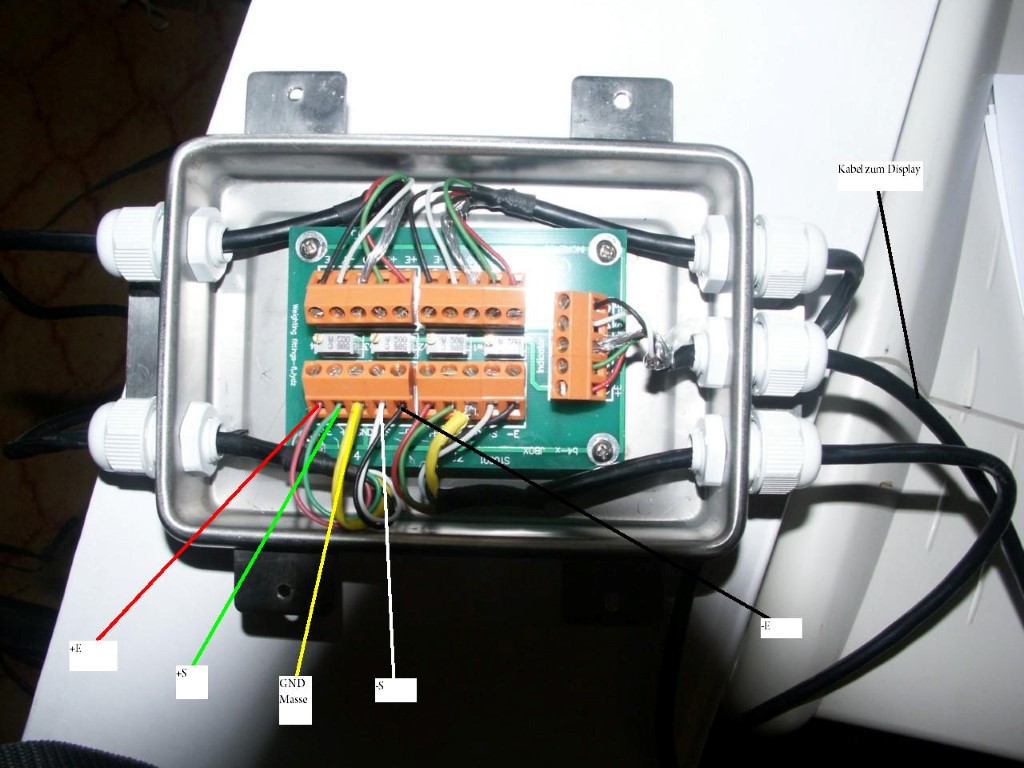

distribution occupancy

Configuration

Connect the cable from the balance on the display to move, the scale is calibrated, should after the turn on count up to -0- available and you can weigh

Should the balance again show expect no zero, press the zero on the display for 2 seconds and make sure that the balance with all four feet is common ground (touching the ground)

It may happen that must nevertheless be calibrated every now and then the scale to see description above

Other settings

Display Off

Press and release the -0- and simultaneously press the ON

After the counting, press the star key 2 x

-SET- Appears

Press the "button to the right"

d ......... .1kg appear, ie the scale weighs in 1kg increments

If you now press the "up" ↑ you may change these steps

2kg, 5kg, 0.1kg ............

Save with the ☀ key

0.1 means the balance weigh in 0,1 kg steps now and shows weigh 452,3 kg instead of before 452 kg

However, after that it is necessary to recalibrate the scale (see above), because the balance weight instead of the previously displayed 452 kg now displays with 45.2 kg

The next setting is

FLT (Filter) 00 is the benchmark to change with the "right" key and the "up" button, so the scale weighs more quickly, especially at tata features, the higher (bis99) faster

Save with ☀ and continue to the next step

Autp = automatic shutdown

Default: 00 = no switch off, 01 = automatic shutdown to change with the "right" and "up" button

Save and continue to next step

Address = address

Default: 00

To save with star ☀

B 2400

Does the baud rate when using a PC at the back interface, here are 2400 or 4800 the usual baud rates to change with the "up" button, save with ☀ key

Ready

There are also some settings on the normaql weight mode

In normal weighing mode, so just press the button -ON-

☀ key 2 x

AUT = Automatic, default 0

The scale can be changed to "animal Mode" with the "up" button, which means once the balance has detected the weight, it "holding", the weight with restless animals and the scale is not constantly jumps back and forth, the weight remains standing until the animal is brought back from the scale

Setting: Press the "up" button on 5

Save with ☀ key
